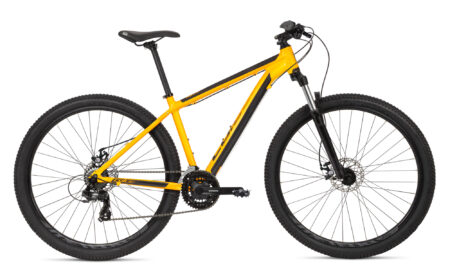

Ascent 273
SKU: MBDTMACT273359€
– Aluminium Ascent frame
– Zoom suspension
– Shimano, 21 speeds
– Shimano MT200 160mm disc brakes
– Mitas Ocelot 27.5×2.10 tires
Specifications
- Frame6061 Aluminium, Sport Geometry, 1-1/8 Semi-integrated Headset and Replaceable Aluminium Dropout
- SuspensionRace 386 27,5", T: 60mm
- ShiftersShimano 3x7v
- Front DerailleurShimano
- Rear DerailleurShimano
- CranksetShimano, 24-34-42t
- Bottom BracketSealed Bearings
- CassetteShimano 14-28t
- ChainKmc HV500
- WheelsAluminium 27,5"
- TiresMitas Ocelot, 27,5x2.10
- Brake LeversShimano MT200
- BrakesShimano MT200, F-160 / R-160 Hydraulic Disc
- HeadsetFSA NO.10P, Semi-integrated
- HandlebarAluminium, W: 640mm, R: 30mm, Ø: 25.4mm
- StemAluminium , Ø: 25.4mm
- SeatpostAluminium, Ø: 27.2mm
- SaddleSelle Royal
- PedalsIncluded
- SizesXS, S
- ColorsOrange (glossy) | White (glossy) | Purple (glossy)
- NotesWe reserve the right to make changes to the product information (specifications, colors, equipment, etc.) at any time without prior notice. Bikes shown in the photos may not match the specification of the model or be equipped with mounting options other than those listed. Due to the screen some of the colors may suffer a slight variation with respect to the original model.
Geometry
Ascent 27.5"
| XS | S | |
| 13.5" | 15" | |
| 1 | 343 | 381 |
| 2 | 555 | 575 |
| 3 | 100 | 100 |
| 4 | 435 | 435 |
| 5 | 306 | 306 |
| 6 | 44 | 44 |
| 7 | 1040 | 1083 |
| 8 | 69° | 69° |
| 9 | 73° | 73° |
| 10 | 44 | 44 |
| 11 | 375 | 395 |
| 12 | 587 | 587 |
| 13 | 495 | 495 |
