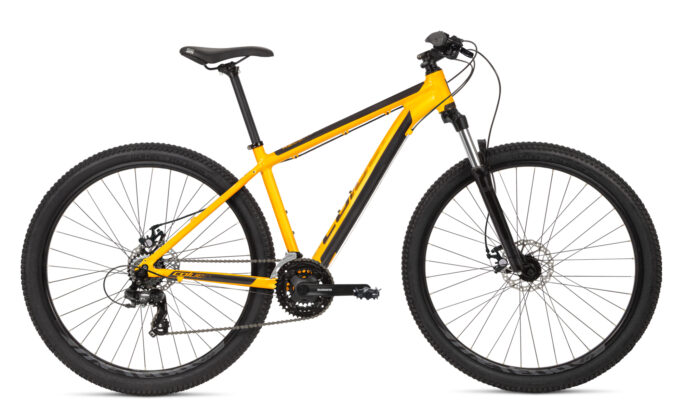

Ascent 272
SKU: MBDTMACT272299€
– Aluminium Ascent frame
– Zoom suspensión
– Shimano 21 speeds
– 160mm Disc Brake
– Mitas Ocelot 27.5×2.10 tires
Specifications
- Frame6061 Aluminium, Sport Geometry, 1-1/8 Semi-integrated Headset and Replaceable Aluminium Dropout
- SuspensionRace 386 27,5", T: 60mm
- ShiftersShimano ST-EF500, 3x7v
- Front DerailleurShimano Tourney
- Rear DerailleurShimano Tourney
- CranksetShimano Tourney, 42-34-24t
- Bottom BracketSealed Bearings
- CassetteShimano 14-28t
- ChainKmc HV500
- WheelsAluminium 27,5"
- TiresMitas Ocelot, 27,5x2.10
- Brake LeversShimano Altus Stef-500
- BrakesF-160 / R-160 Mechanical Disc
- HeadsetFSA NO.10P, Semi-integrated
- HandlebarAluminium, W: 640mm, R: 30mm, Ø: 25.4mm
- StemAluminium, Ø: 25.4mm
- SeatpostAluminium, Ø: 27.2mm
- SaddleSelle Royal
- PedalsIncluded
- SizesXS, S
- ColorsOrange (glossy) | White (glossy) | Purple (glossy)
- NotesWe reserve the right to make changes to the product information (specifications, colors, equipment, etc.) at any time without prior notice. Bikes shown in the photos may not match the specification of the model or be equipped with mounting options other than those listed. Due to the screen some of the colors may suffer a slight variation with respect to the original model.
Geometry
Ascent 27.5"
| XS | S | |
| 13.5" | 15" | |
| 1 | 343 | 381 |
| 2 | 555 | 575 |
| 3 | 100 | 100 |
| 4 | 435 | 435 |
| 5 | 306 | 306 |
| 6 | 44 | 44 |
| 7 | 1040 | 1083 |
| 8 | 69° | 69° |
| 9 | 73° | 73° |
| 10 | 44 | 44 |
| 11 | 375 | 395 |
| 12 | 587 | 587 |
| 13 | 495 | 495 |
