Zap 201
SKU: IFDSMZAP201-1249€
– Aluminium Zap 20″ frame
– Aluminium 20″ rigid fork
– Shimano Revoshift, 7 speeds
– Aluminium V-Brake
– Mitas Ocelot 20×2.10 tires
Specifications
- Frame6061 Aluminium, Children specfici NEO geometry, replaceable aluminium dropout
- Fork20" aluminium rigid
- ShiftersShimano Revoshift, 1x7vl
- Rear DerailleurShimano Tourney FT
- CranksetAluminium, 32x127mm
- CassetteShimano Tourney 14-28t
- ChainKmc HV500
- WheelsAluminium 20"
- TiresMitas Ocelot, 20x2.10
- Brake LeversAluminiun, short range and soft touch
- BrakesV-Brake Aluminium
- HeadsetSemi-integrated
- HandlebarAluminium, W: 520mm, R: 30mm, Ø: 25.4mm
- StemAluminium, Ø: 25.4mm
- SeatpostAluminium, Ø: 27.2mm
- SaddleSelle Royal
- PedalsIncluded
- EquipmentTraining wheels / Reflectors
- ColorsYellow (glossy) | White (glossy)
- NotesWe reserve the right to make changes to the product information (specifications, colors, equipment, etc.) at any time without prior notice. Bikes shown in the photos may not match the specification of the model or be equipped with mounting options other than those listed. Due to the screen some of the colors may suffer a slight variation with respect to the original model.

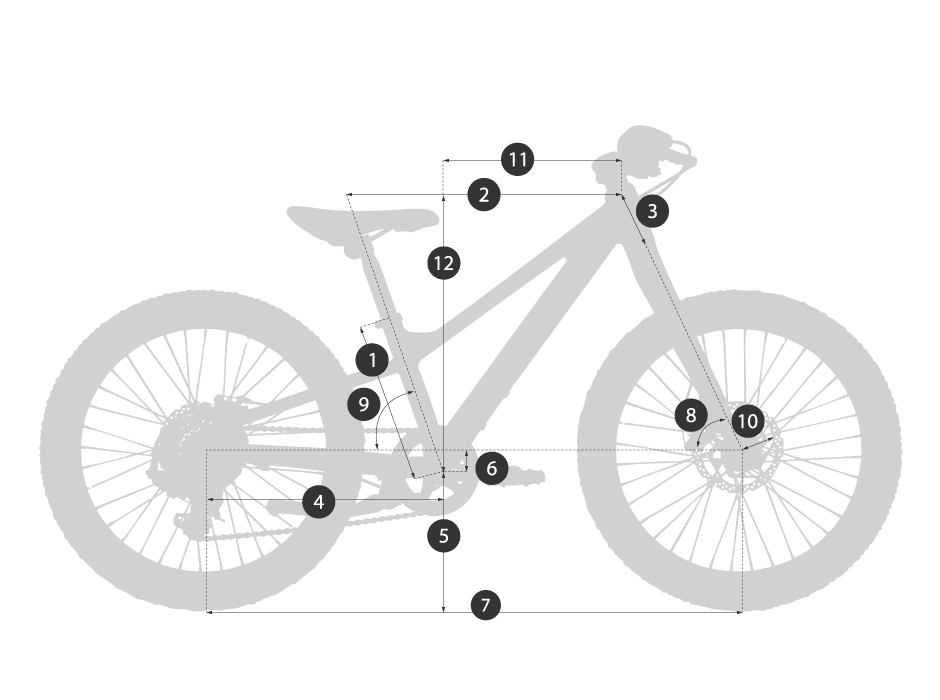

Geometry
| Talla | Altura del ciclista |
| Rueda de 12" (balance bike) | 86 - 102 cm |
| Rueda de 16" | 96 - 111 cm |
| Rueda de 20" | 114 - 132 cm |
| Rueda de 24" | 130 - 150 cm |
| Rueda de 27,5 (XS)" | 145 - 165 cm |
ZAP 20
| -- | |
| 1 | 255 |
| 2 | 445 |
| 3 | 85 |
| 4 | 372 |
| 5 | 220 |
| 6 | 30 |
| 7 | 860 |
| 8 | 70° |
| 9 | 70° |
| 10 | 35,4 |
| 11 | 302 |
| 12 | 441 |
| 13 | 364 |
