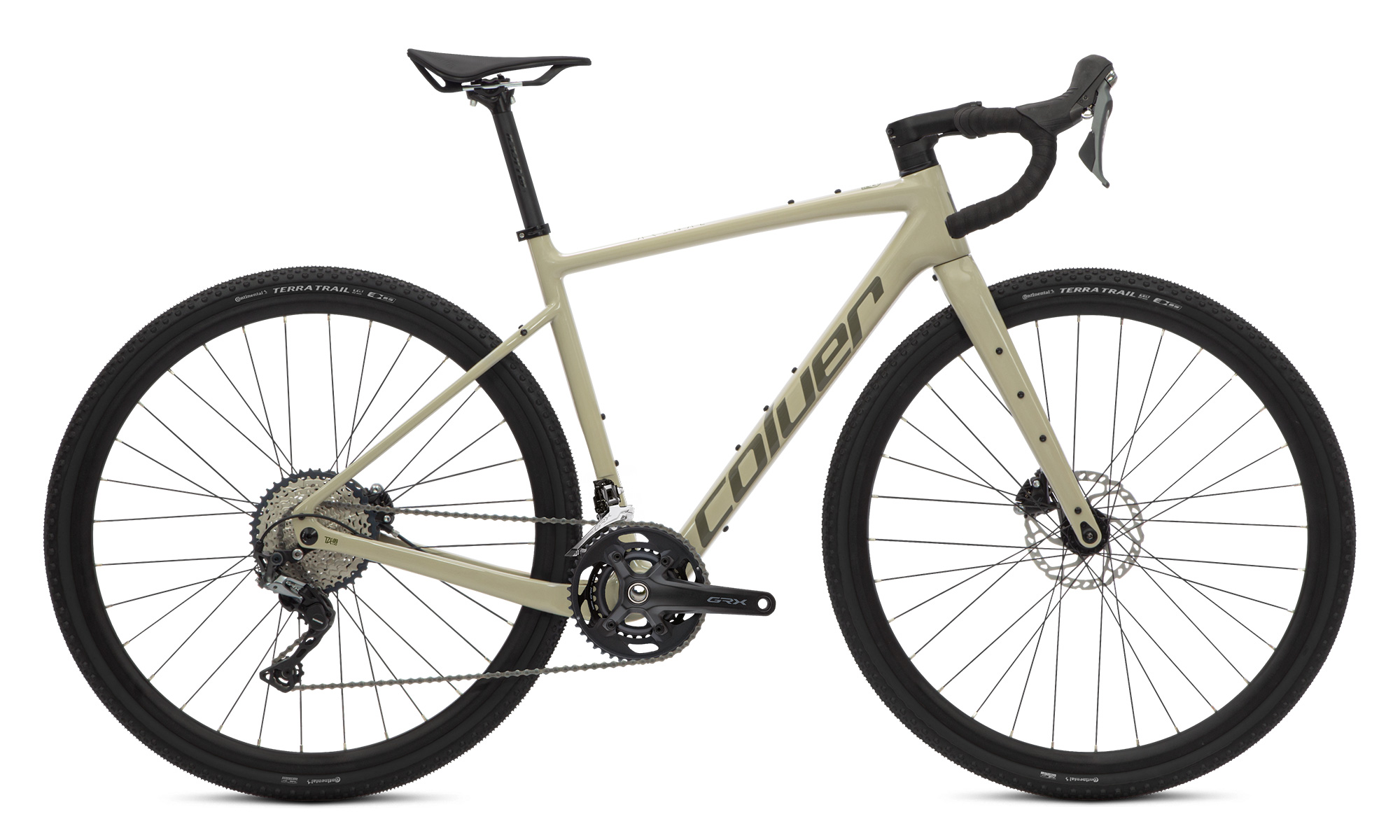

Coluer Arenal 6.6 Khaki Gravel carbon bicycle Shimano GRX
Coluer Arenal
Coluer Arenal
Coluer Arenal
Arenal 6.6 - Image 5
Home / Bikes / Gravel / Arenal 6.6

Arenal 6.6

SKU: GRDQMARNL66

1.799€

– Carbon Arenal frame

– Gravel carbon fork

– Shimano GRX 820, 2x12sp

– Shimano GRX 600 disc brakes

– Continental Terra Trail tyres

– Gravel 23 TR wheelset


Clear
  • Description

Description

Your trusted companion for exploring new horizons. With a carbon frame and fork, this bike offers a progressive and controlled riding experience on any terrain. Equipped with Shimano GRX components and additional attachment points, the Arenal is ready to take on all mountain adventures. Discover new paths and let yourself get lost.

The brake and gear cables are inserted through a guide integrated in the stem, through which they pass directly into the frame, this facilitates maintenance and minimizes aerodynamic resistance. Internal Cable Routing The wheel arch is wider and allows the mounting of 45 mm tires, a measure thick enough to absorb the irregularities of the pavement and transmit greater comfort. Wider tyre clearance The frame has multiple anchor points where you can attach all kinds of accessories, such as travel bags, panniers, mudguards and various water bottles, essential elements for transporting basic luggage and supplies during long routes. Multiple anchor points The bottom bracket adopts the BSA standard thread system, so that the box area is much more solid and resistant to flexing that is created with each pedal stroke, this is undoubtedly a reliable system with easier maintenance . BSA Bottom Bracket Frame prepared for oversized 12mm wheel axle. The THRU AXLE system offers greater rigidity to resist the twisting of a 700c wheel as much as possible. Thru axle Carbon frame composed of unidirectional intertwined toray fibers with different composition, direction and volume of the carbon layers depending on the areas of the frame, reinforcing the points subjected to greater fatigue, reducing flexion and absorbing vibrations and blows that the bike may suffer. Carbon frame

Specifications

  • Frame
    HMC carbon, gravel geometry, multiple bottle and accessory mounts, 1.5 steerer, internal cable routing, 12x142mm axle, flat mount disc
  • Fork
    Monocoque carbon, special gravel, 12mm axle
  • Shifters
    Shimano GRX 600, 2x12v
  • Front Derailleur
    Shimano GRX 820
  • Rear Derailleur
    Shimano GRX 820
  • Crankset
    Shimano GRX R600, 46-30t
  • Bottom Bracket
    Shimano RS500, sistema BSA
  • Cassette
    Shimano HG710, 11-36t
  • Chain
    KMC, 12v
  • Wheels
    Gravel 23, 700c, Tubeless Ready
  • Tires
    Continental Terra Trail, 700x45
  • Brake Levers
    Shimano GRX 600
  • Brakes
    Shimano GRX 600, disc F- 160mm / R-160mm
  • Headset
    Token, sealed with A-Box semi-integrated cable routing
  • Handlebar
    Icon Gravel, drop 124mm, reach 80mm, Ø 31.8mm
  • Stem
    TranzX, Ø 31.8mm
  • Seatpost
    Icon Supernova, Ø 27.2
  • Saddle
    Selle Italia X-Model
  • Sizes
    M, L
  • Colors
    Green (matt) / Khaki (glossy)
  • Notes
    We reserve the right to make changes to the product information (specifications, colors, equipment, etc.) at any time without prior notice. Bikes shown in the photos may not match the specification of the model or be equipped with mounting options other than those listed. Due to the screen some of the colors may suffer a slight variation with respect to the original model.

Geometry

Arenal
S M L XL
52 54 56 58
1 500 520 540 560
2 535 553 567 580
3 125 140 155 170
4 435 435 435 435
5 287 287 287 287
6 76 76 76 76
7 1022 1031 1040 1054
8 71° 71.5° 72° 72°
9 74° 73.5° 73.5° 73.5°
10 50 50 50 50
11 375 384 393 402
12 549 572 588 603
