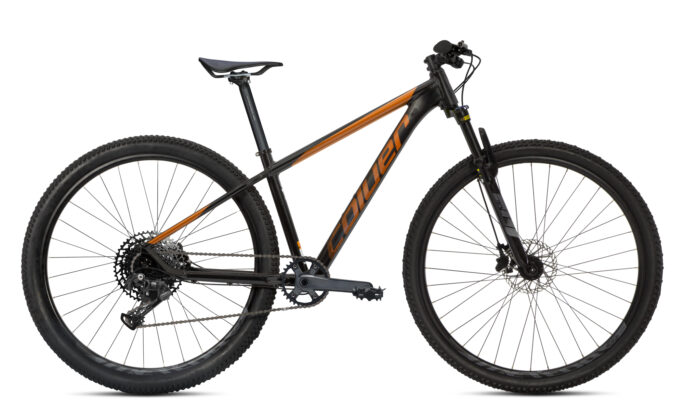

Pragma S-Race (525 MLO)
SKU: PragmaSRace525MLO– Pragma AL aluminium frame
– Horquilla 525 AMS MLO, Blockable
– SunRace 10 speeds
– Shimano MT200 disc brakes
– Hartex Xtra Action 29×2.40 tires
Specifications
- Frame6061 aluminium, XC/Sport geometry, Internal cable routing system, 1-1/8 - 1.5 tapered headset, Forged dropouts with poost mount brake system
- Suspension525 AMS MLO 29", Blockable, T: 100mm
- Suspension OptionRockShox Judy TK Air 29" (+212€)
- Suspension LockoutRemote lockout
- ShiftersSunRace, 1x10v
- Rear DerailleurSunRace MS100
- CranksetSunRace, 32t
- Bottom BracketSealed bearings
- CassetteSunRace, 11-42t
- ChainKmc X10
- WheelsIcon Meteor 29"
- TiresHartex Xtra Action, 29x2.40
- Brake LeversShimano MT200
- BrakesShimano MT200, F-160 / R-160 Hydraulic disc
- HeadsetFSA NO.42B / Cup, Semi Integrada
- HandlebarIcon Supernova, W: 720mm, Ø: 31.8mm
- StemIcon Supernova, Ø: 31.8mm
- SeatpostIcon Supernova, Ø: 31.6mm
- SaddleSelle Italia Model X
- PedalsIncluded
- SizesM, L
- ColorsBlack (gloss) | Silver (matt) | Vanilla (matt) | Gray (gloss) | Blue (matt)
- NotesWe reserve the right to make changes to the product information (specifications, colors, equipment, etc.) at any time without prior notice. Bikes shown in the photos may not match the specification of the model or be equipped with mounting options other than those listed. Due to the screen some of the colors may suffer a slight variation with respect to the original model.
Geometry
Pragma
| M | L | ||
| 17" | 19" | ||
| 1 | 440 | 480 | |
| 2 | 600 | 620 | |
| 3 | 105 | 115 | |
| 4 | 445 | 445 | |
| 5 | 310 | 310 | |
| 6 | 50 | 50 | |
| 7 | 1108 | 1128 | |
| 8 | 69.5° | 69.5° | |
| 9 | 73° | 73° | |
| 10 | 46 | 46 | |
| 11 | 406 | 425 | |
| 12 | 609 | 618 | |
| 13 | 506 | 506 |
