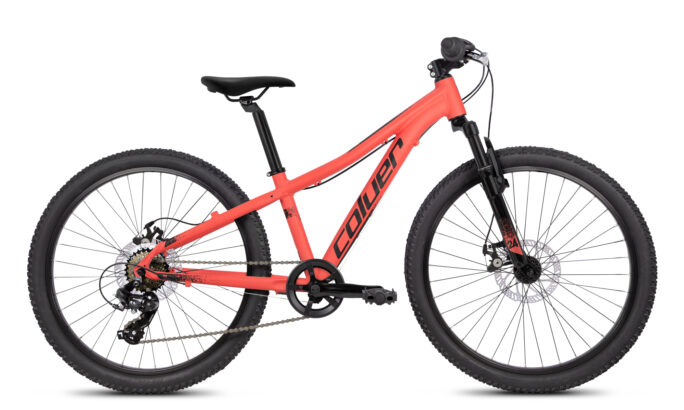

Diva 242
SKU: JRDTMDIV242285€
– Diva 242 aluminium frame
– Race 386 24″ suspension fork
– Shimano Revoshift / Tourney, 7 speeds
– 160mm mechanical disck brakes
– Mitas Ocelot 24×2.10 tires
Specifications
- Frame6061 Aluminium, Junior Geometry, 1-1/8Semi-integrated Headset, Aluminium replaceable hanger
- SuspensionRace 386 24", T: 50mm
- ShiftersShimano Revoshift Tourney 1x7v
- Rear DerailleurShimano Tourney TY
- Crankset32x127mm
- Bottom BracketSealed bearings
- CassetteShimano Tourney 14-28t
- ChainKmc HV500
- WheelsAluminio 24"
- TiresMitas Ocelot, 24x2.10
- Brake LeversAluminium
- BrakesMechanical Disc F-160 / R-160
- HeadsetSemi-integrated
- HandlebarAluminium, W: 600mm, R: 30mm, Ø: 25.4mm
- StemAluminium, Ø: 25.4mm
- SeatpostAluminium, Ø: 31.6mm
- SaddleSelle Royal
- PedalsIncluded
- EquipmentKickstand | Reflectors
- ColorsPink
- NotesWe reserve the right to modify product information without prior notice. Photographs may differ from model specifications.
Geometry
Diva 24"
| -- | |
| 12" | |
| 1 | 355 |
| 2 | 500 |
| 3 | 100 |
| 4 | 420 |
| 5 | 250 |
| 6 | 45 |
| 7 | 964 |
| 8 | 70° |
| 9 | 72° |
| 10 | 40 |
| 11 | 331 |
| 12 | 520 |
| 13 | 410 |
