Invicta Disc 5.3
SKU: CTDTMIVDS53– HMC carbon Invicta Disc frame
– Full carbon fork
– Sram Rival 2×11 speeds
– Sram Rival disc brakes
– Fulcrum Racing 9 wheelset
– Vittoria Rubino IV, 700x28c tires
Specifications

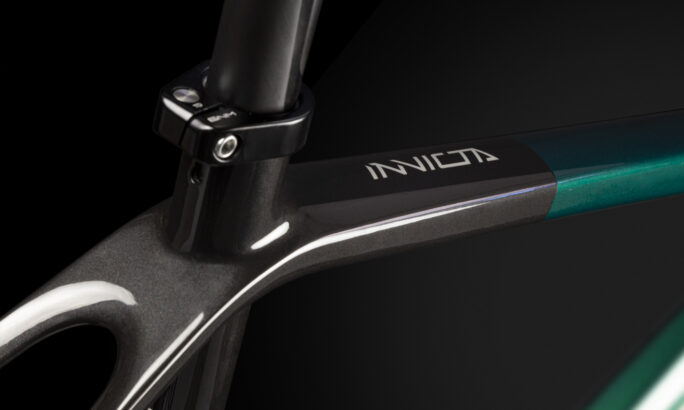

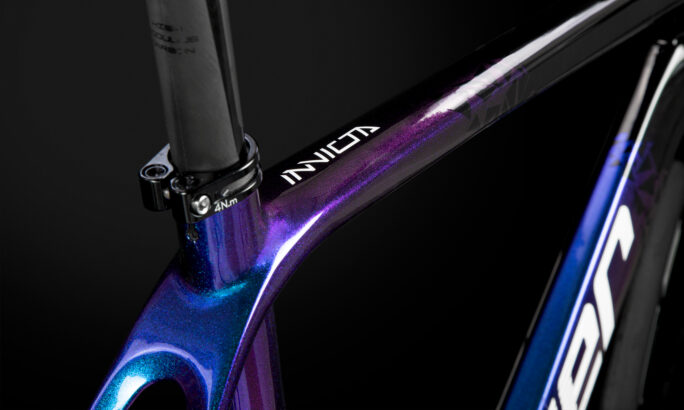

- FrameHMC Carbon, Gran Fondo/Endurance RD Geometry, Internal Cable Routing, BB86 Bottom Bracket and 1-1/8 - 1.5 Tapered Headset
- ForkMonocoque Carbon with Carbon Stem
- ShiftersSram Rival 2x11v
- Front DerailleurSram Rival
- Rear DerailleurSram Rival
- CranksetSram Rival 36-52t
- Bottom BracketSram Pressfit
- CassetteSram PG-1130, 11-28t
- ChainSram PC-1130
- WheelsFulcrum Racing 9
- Wheels OptionFulcrum Racing 4 | Prototype Pro Tour AL | Prototyoe Por Tour 3/5| Prototype World Tour 3/5
- TiresVittoria Rubino IV, Folding, 700x28c
- Brake LeversSram Rival
- BrakesSram Rival, F-160 / R-160 Hydraulic Disc
- HeadsetFSA NO.42/ACB, Integrated with Sealed Bearings
- HandlebarIcon Supernova, W: 420/440mm Ø: 31.8mm
- StemIcon Supernova, Ø: 31.8mm
- SeatpostIcon Supernova, Ø: 27.2mm
- SaddleSelle Italia X-Model
- SizesXS, S, M, L, XL, XXL
- ColorsChameleon Blue (Gloss) | Green-Black (Gloss)
- NotesWe reserve the right to make changes to the product information (specifications, colors, equipment, etc.) at any time without prior notice. Bikes shown in the photos may not match the specification of the model or be equipped with mounting options other than those listed. Due to the screen some of the colors may suffer a slight variation with respect to the original model.
Geometry
Invicta Disc

XS | S | M | L | XL | XXL | |
47 | 50 | 53 | 55 | 57 | 59 | |
1 | 470 | 500 | 530 | 550 | 570 | 590 |
2 | 515 | 523 | 544 | 555 | 575 | 589 |
3 | 110 | 120 | 140 | 155 | 175 | 200 |
4 | 415 | 415 | 415 | 417 | 417 | 417 |
5 | 274 | 274 | 274 | 274 | 274 | 274 |
6 | 70 | 70 | 70 | 70 | 70 | 70 |
7 | 979 | 985 | 986 | 997 | 1003 | 1017 |
8 | 71° | 71.5° | 72.5° | 72.8° | 73.7° | 73.5° |
9 | 74.5° | 74.5° | 73.5° | 73.5° | 73° | 73° |
10 | 43 | 43 | 43 | 43 | 43 | 43 |
11 | 374 | 380 | 383 | 390 | 398 | 405 |
12 | 507 | 519 | 542 | 557 | 579 | 603 |
13 | 367 | 367 | 367 | 367 | 367 | 367 |
